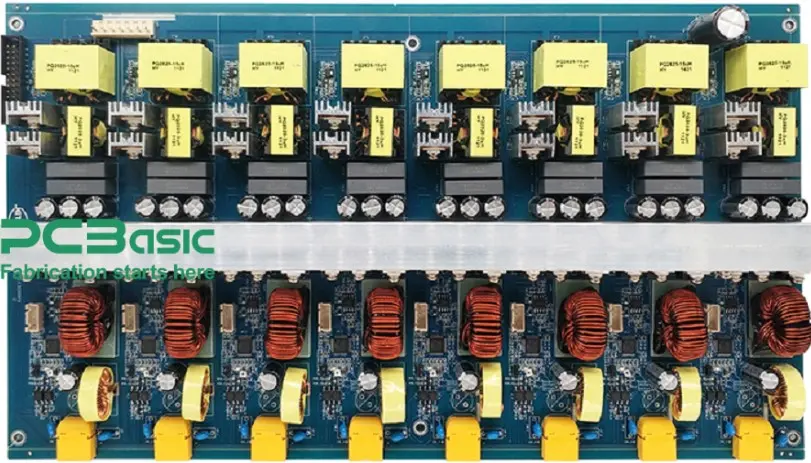

Modern electronic devices rely on highly complex printed circuit board assemblies (PCBAs) to function reliably and efficiently. Behind every finished PCBA lies a carefully managed manufacturing process that transforms individual electronic parts into fully assembled, tested, and ready-to-use circuit boards. In this article, we’ll take you inside the complete process that PCBA manufacturers follow to convert raw electronic components into fully functional assemblies.
Understanding Electronic Parts Assembly
At the heart of every PCBA is a variety of electronic parts, including:
- Integrated circuits (ICs)
- Resistors, capacitors, and inductors
- Diodes and transistors
- Connectors and switches
- Specialized sensors and modules
Electronic parts assembly refers to the process of accurately placing and soldering these components onto the printed circuit board (PCB) to create complete functional circuits. The success of this process depends on precision, consistency, and strict quality control throughout every stage of manufacturing.
Step 1: PCB Fabrication
Before electronic parts can be assembled, manufacturers first produce the bare printed circuit board. This includes:
- Preparing substrate materials like FR4 or polyimide.
- Etching copper traces that form the electrical pathways.
- Drilling vias and through-holes for multi-layer connections.
- Applying solder mask and surface finish to protect the copper and ensure solderability.
The quality of the fabricated PCB directly affects the performance and reliability of the finished assembly.
Step 2: Component Procurement & Preparation
Once the PCBs are ready, manufacturers source the required electronic parts based on the bill of materials (BOM) provided by the customer or design team. During this phase:
- All components are inspected for authenticity, correct specifications, and any physical damage.
- Moisture-sensitive devices are handled and stored according to industry standards (MSL handling).
- Anti-static precautions are taken to prevent electrostatic discharge (ESD) damage.
Proper component preparation ensures smooth, defect-free assembly.
Step 3: Solder Paste Application
The first physical assembly step is applying solder paste to the PCB’s surface mount pads using a stencil. This step is critical because:
- Accurate solder paste volume ensures strong, reliable solder joints.
- Automated solder paste inspection (SPI) verifies correct deposition before further assembly.
Without proper solder paste application, defects like insufficient solder, bridging, or poor wetting can occur during reflow.
Step 4: Surface Mount Technology (SMT) Placement
The majority of modern PCBAs are assembled using Surface Mount Technology (SMT). This step involves:
- High-speed pick-and-place machines accurately placing each component on the PCB.
- Machines are programmed using exact X/Y coordinates and rotation data from CAD files.
- Tiny components such as 0201 capacitors or large ICs like BGAs are handled with micron-level precision.
Proper placement ensures that all components are perfectly aligned for optimal soldering during reflow.
Step 5: Reflow Soldering
Once all surface mount components are placed, the PCB enters the reflow oven, where:
- The temperature gradually rises to melt the solder paste.
- Molten solder forms strong electrical and mechanical connections.
- The board cools down in a controlled manner to solidify the joints.
Reflow profiles are carefully calibrated to avoid defects such as tombstoning, voids, or cold joints.
Step 6: Through-Hole Component Assembly (if applicable)
Some components, such as connectors, transformers, or power components, still require Through-Hole Technology (THT) assembly. This involves:
- Inserting leads into drilled holes on the PCB.
- Securing the components via wave soldering or selective soldering processes.
This step complements SMT to complete the entire component assembly.
Step 7: Automated Optical Inspection (AOI)
After soldering, the assembled PCB undergoes AOI to detect:
- Component presence, orientation, and polarity.
- Solder joint quality.
- Missing or misplaced components.
- Shorts or solder bridges.
High-resolution cameras and sophisticated software allow AOI systems to quickly identify most visual defects.
Step 8: Functional Testing
Before shipment, most PCBAs undergo electrical testing, which may include:
- In-Circuit Testing (ICT): Verifying that all components are properly connected and functioning.
- Functional Testing (FCT): Powering up the PCB and running specific functions to simulate real-world performance.
Testing ensures that every assembled board operates according to the design specifications.
Step 9: Cleaning, Conformal Coating & Protection
Depending on the application, additional processes may be applied:
- Cleaning: Removing flux residues to improve long-term reliability.
- Conformal coating: Applying protective layers against moisture, dust, and chemical exposure.
- Underfill or potting: Providing extra mechanical strength for certain sensitive components.
Step 10: Final Inspection and Packaging
Before delivery to the customer, every PCBA goes through final inspection for any cosmetic or mechanical defects. The boards are then carefully packaged using:
- Anti-static bags or trays.
- Moisture barrier packaging.
- Protective cushioning for shipment.
Proper packaging ensures that the boards arrive at the customer’s facility in perfect condition.
Conclusion
The journey from electronic parts assembly to complete PCBA is a complex, multi-step process that requires advanced equipment, experienced technicians, and strict quality control at every stage. Professional PCBA manufacturers carefully manage each detail — from sourcing components to final functional testing — to deliver reliable, high-performance circuit board assemblies that power today’s advanced electronics.
Choosing a skilled PCBA manufacturing partner ensures not only product quality but also improved time-to-market, cost efficiency, and long-term reliability in any electronic device.
